Defensive Barrier- Gabion Hardware Mesh

Defensive Barrier

Defensive barrier

Professional Protective Wire Mesh Manufacturer
Whether for military defense or ecological engineering, our wire mesh products provide perfect solutions.
Explosion-proof Cages—Made with high-tensile steel wire, featuring robust welding strength, quickly constructing high-strength explosion-proof walls that are impact-resistant and penetration-proof

Product feature:

1.Units can be both lined or unlined in other word it can be used together to any length, and can be stacked for additional height.

2. The spiral hinged corners allows flat packing for ease of transportation

3. The welded mesh frame is of highly durable construction

4. The Galfan coated welded mesh frame is ideal for containing large amounts of the geavy fill material thatgives the system its strength.

5. The non-woven geotextile liner allowing a wide range of fill material

Brief description:

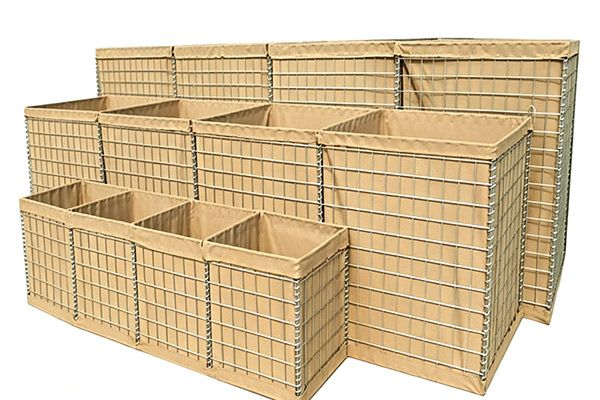

Mesh gabion is also known as gabion barrier, gabion. It is made of steel welded mesh, spring coil, non-woven geotextile with other fittings to make a simple and strong multi-cellular system.

The finish of barrier is in pre galvanized,galfan coated,hot dipped galvanized to anti corrosion for long lifespan. The barrier is easy to move and install, so it is widely used in defensive blast wall, flood control, erosion control, security fence barrier and garden decoration.

Product Name	Defensive barrier
Product Type	Welded mesh
Material	Galvanized steel wire or Galfan/zinc-5%aluminum wire
Wire Diameter	3.0-5.0mm
Geotextile	250g-400g
Geotextile colour	sand clolor, Brown, Gray,and Green.
Mesh hole	76.2mm× 76.2mm, 50mm× 50mm, 75mm× 75mm, 100mm× 100mm

Model	Height(M)	Width(M)	Length(M)	Cells Number
1	1.37	1.06	10	5+4=9cells
2	0.61	0.61	1.21	2 cells
3	1.0	1.0	10	5+5= 10 cells
4	1.0	1.5	10	5+5= 10 cells
5	0.61	0.61	3.05	5 cells
6	1.68	0.61	3.05	5 cells
7	2.21	2.13	27.74	5+4+4=13 cells
8	1.37	1.22	10	4+5=9 cells
9	1.0	0.76	9.14	6+6=12 cells
10	2.12	1.52	30.5	5+5+5+5=20 cells
