Gabion Mesh- Gabion Hardware Mesh

Gabion Mesh

Gabion

Gabion Mesh Advantages:
1,Strong, durable: low carbon steel wire with high tensile strength and high strength galvanized surface to prevent corrosion.
2,Low cost:Different grades of stone can be used as filler, sometimes even some clean construction waste can be used asfiller,Savings in foundation treatment costs
3,Easy to install: The netting process simply involves placing rocks in cages

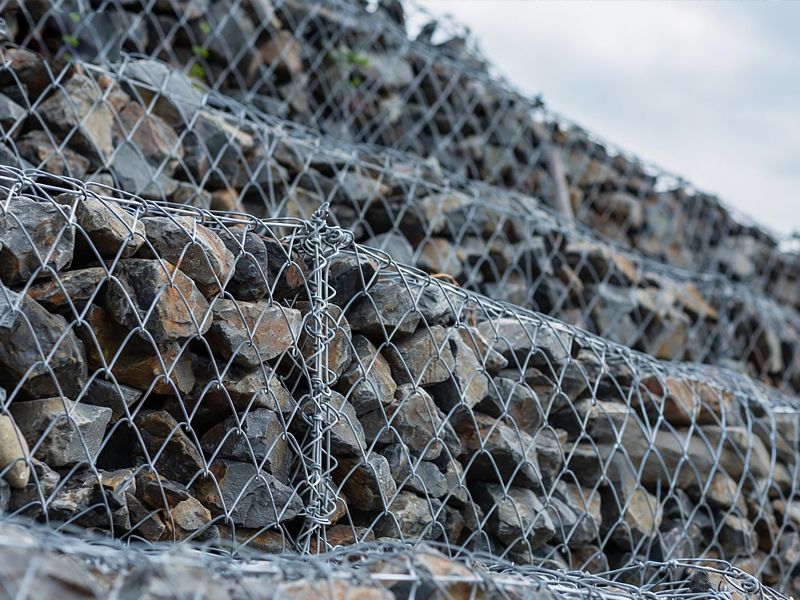

Gabions are wire mesh containers constructed from galfan coated/hot galvanized steel wire, filled with hard rock, stone or other materials. Gabions are made up from various sized panels which are formed up into a box. The panels are connected together with either spiral / helical wire or with C-Rings.

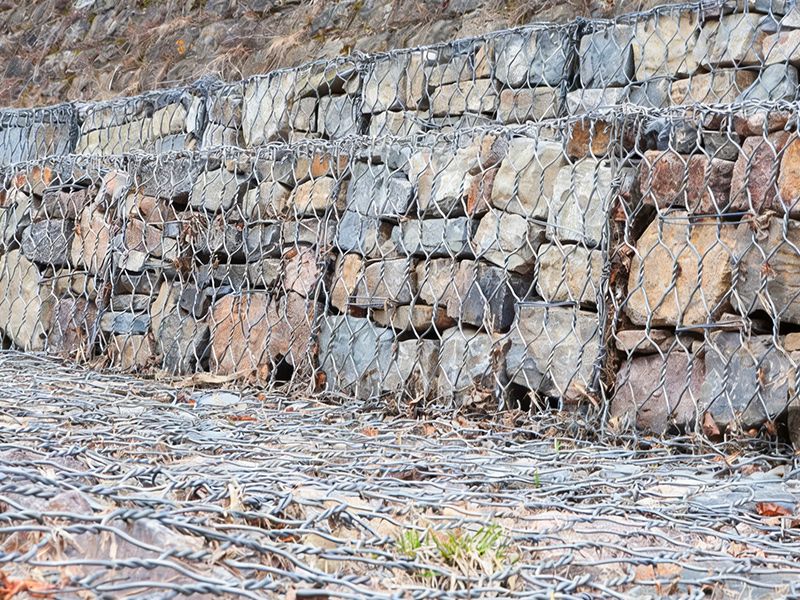

Gabion walls are considered a gravity wall system. It depends on their own mass or weight to withstand pressures from behind the structure,
in this case weight (rock) held within the gabion container. The containers are linked together when assembled which creates an individual structure. Once the gabions are linked the strength of the structure increases significantly.

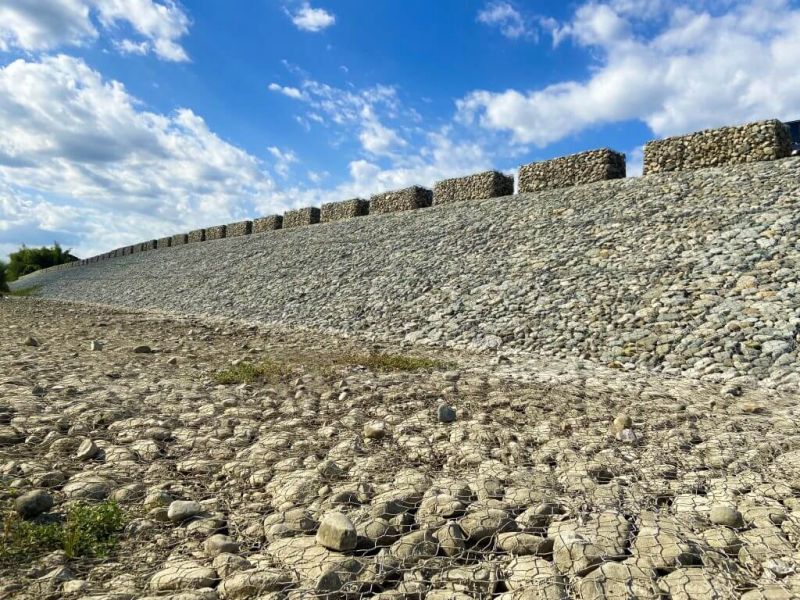

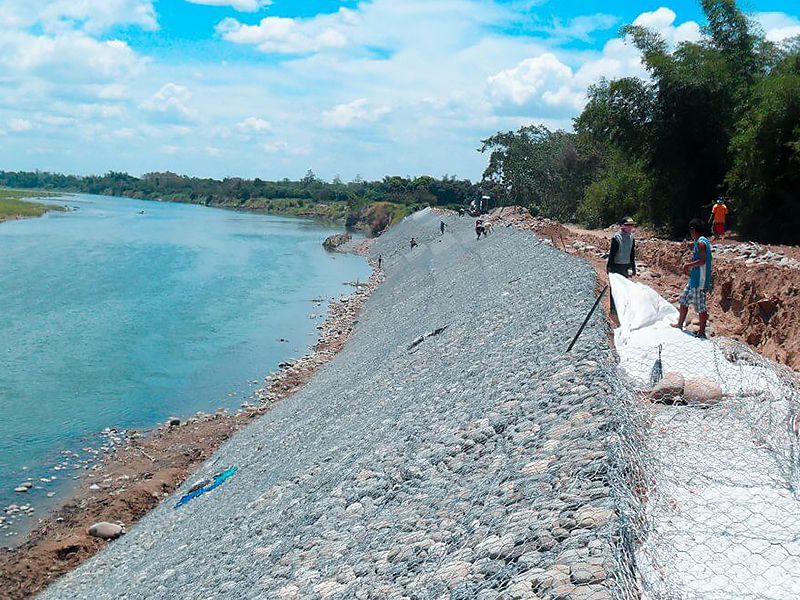

This allows the user to form walls for retaining land, eliminate erosion, control water speed, support river banks and many other applications.

ASTM 975 Standards:
Standard	style 1 Galvanized wire as per ASTM A 641, class 3 soft temperstyle 2 Same as style 1 with extra coating with PVC.style 3 Zn-5Al or Zn-10Al coated wire as per ASTM A 856, also known as Galfan wire.
	EN 10223-3 standard:
	Galvanized wire meets EN 10244-2 and old BS 443Wire tensile strength is between 380N/mm2 and 550N/mm2 as per BS 1052.

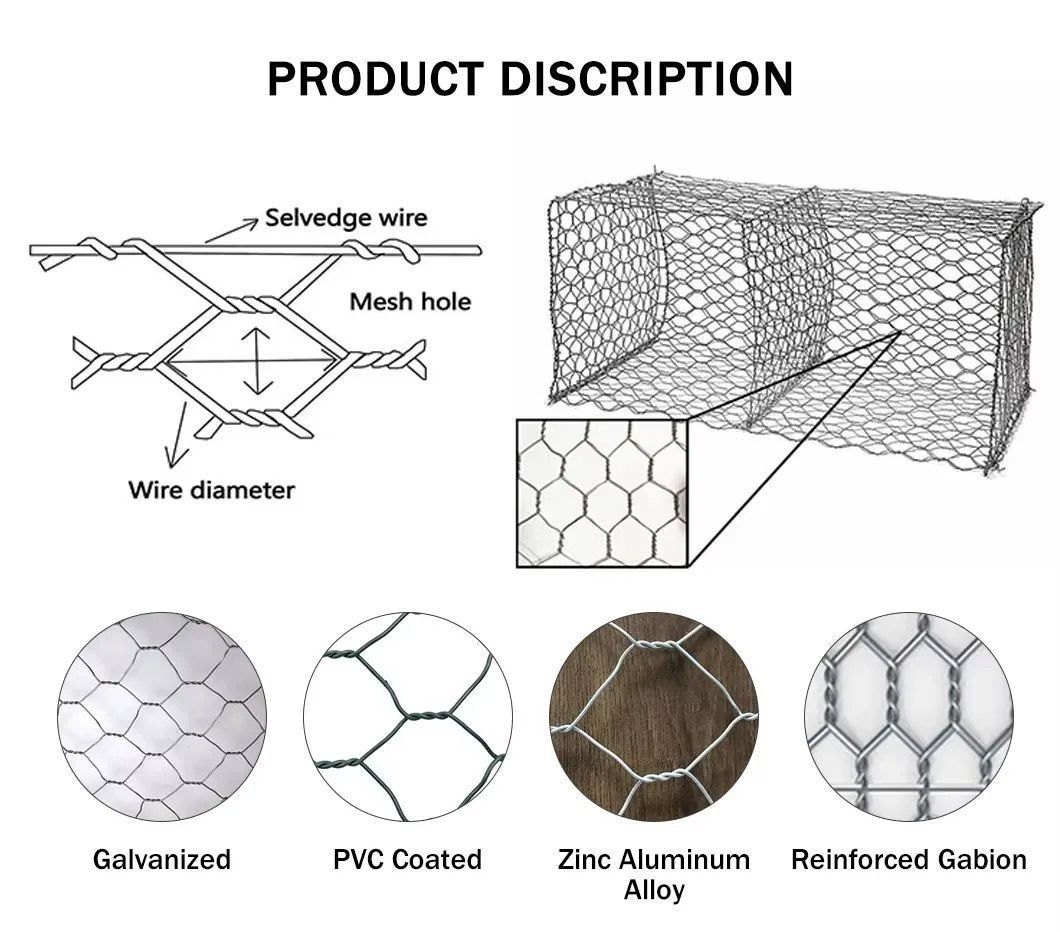

Aperture (mm)	Wire Diameter (mm)	Edge wire (mm)	Gabion Sizes (m)	Material (zinc coating)
60x80mm	2.2mm/2.7mm	2.4mm/3.4mm	6x2x0.3m/2x1x0.5m	1.galvanized steel wire 2.high zinc steel wire 3.pvc coating steelwire
80x100mm	2.7mm/3.0mm/3.2mm	2.4mm/3.4mm	2x1x1/3x1x1m/4x1x1m
100x120mm	3.0mm/3.05mm/3.2mm	3.4mm	3x1x1/4x1x1m/5x1x1m
System
80x100mm	2.7mm/3.0mm/3.2mm	2.4mm/3.4mm	2x1x3m/2x1x6m
