Barbed Wire

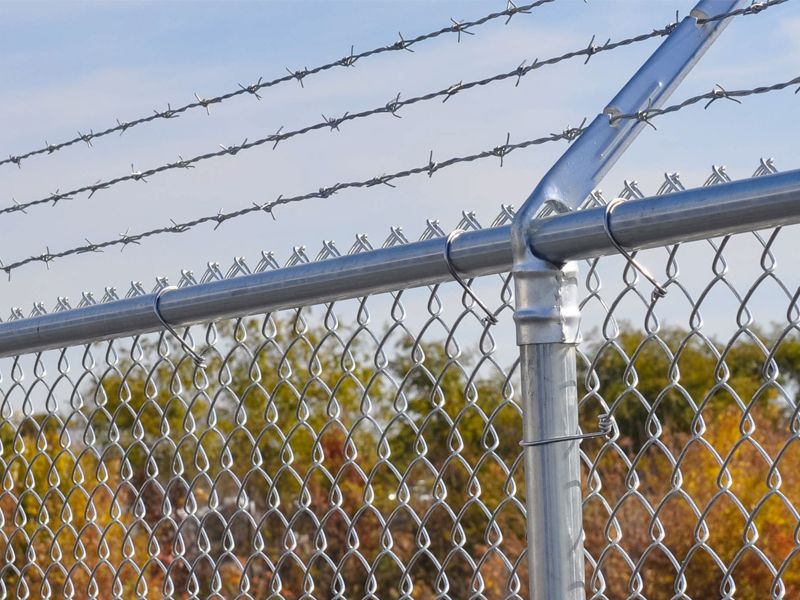

Barbed wire fencing is commonly used to protect the tops of fences needed to protect important national facilities, borders, public utility sites, and other critical assets.
It is often seen as a cost-effective solution to further enhance perimeter security.

The wire rope is made by twisting and weaving high-quality low-carbon steel wires using an automated wire rope manufacturing machine.

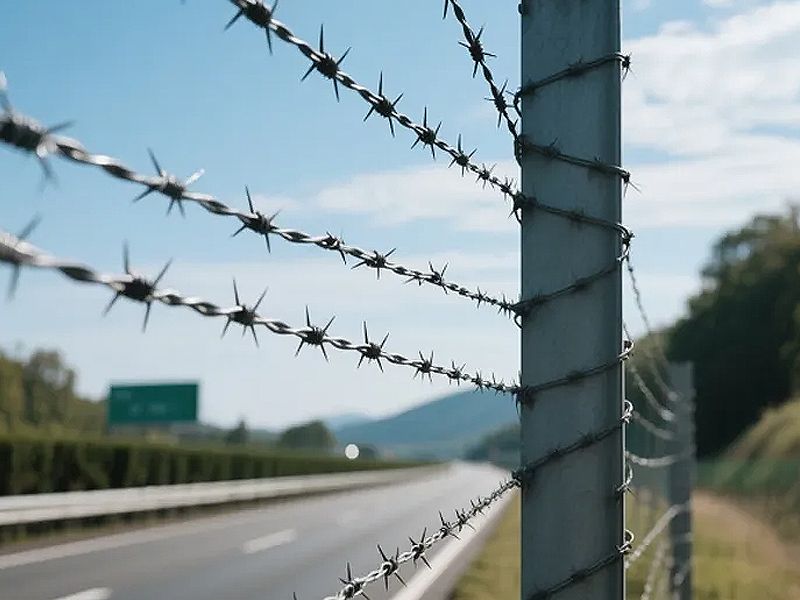

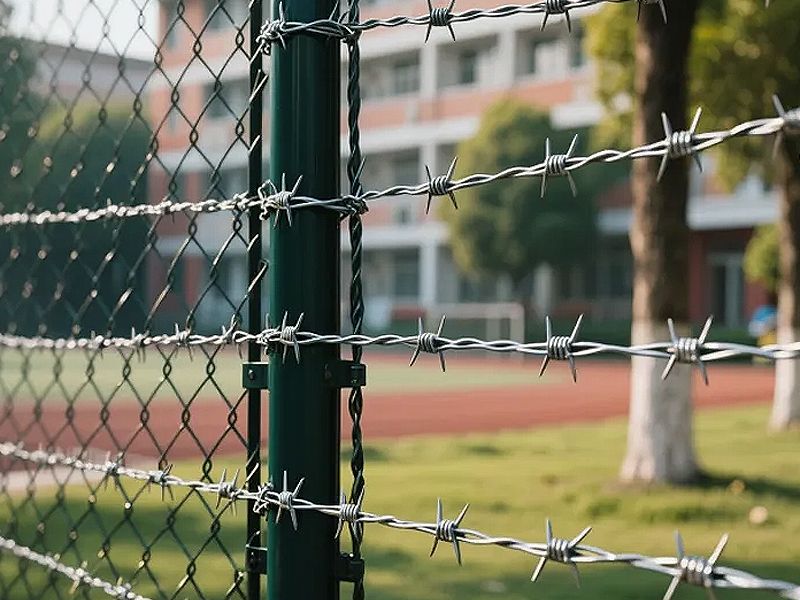

Used for boundary separation of pastures, railway lines, highways, prisons, and private areas, as well as for isolation and protection purposes.

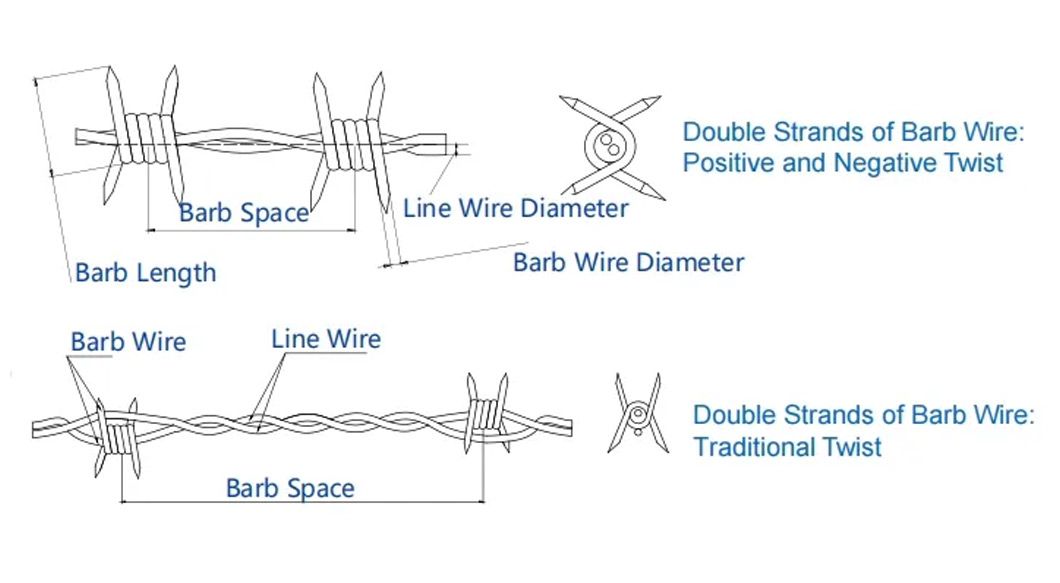

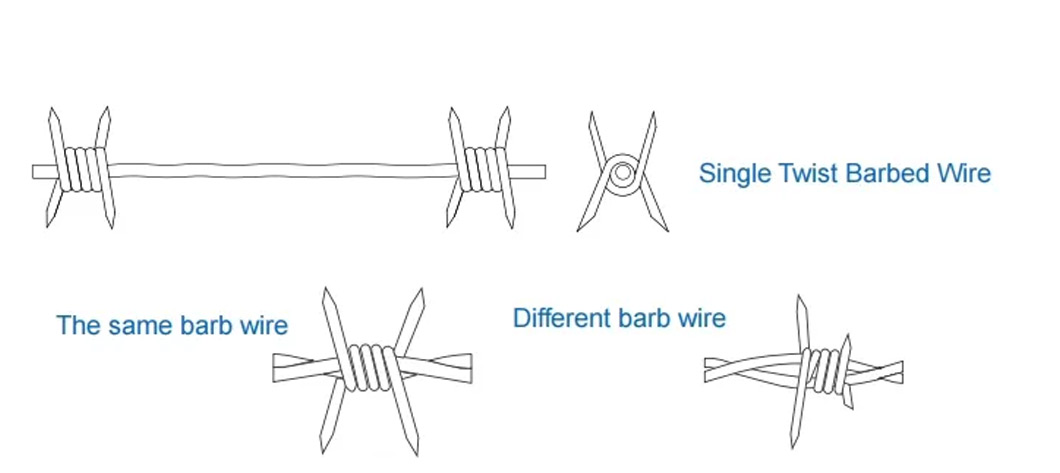

Barbed Wire Specification
Type	Wire Gauge(SWG)		Barb Distance(cm)	Barb Length(cm)
Electro GalvanizedBarbed WireHot-dipped GalvanizedBarbed Wire	10#x12#		7.5-15	1.5-3
	12#x12#
	12#x14#
	14#x14#
	13#16#
	16#16#
	16#x18#
PVC coated Barbed Wire,PE Barbed Wire	Before coating	After coating	7.5-15	1.5-3
	1.0mm-3.5mm	1.4mm-4.0mm
	BWG11#-20#	BWG8#-17#
	SWG11#-20#	SWG8#-17#
PVC/PE coated thickness:0.4mm-0.6mm,different colors or length are available at customers' request.
